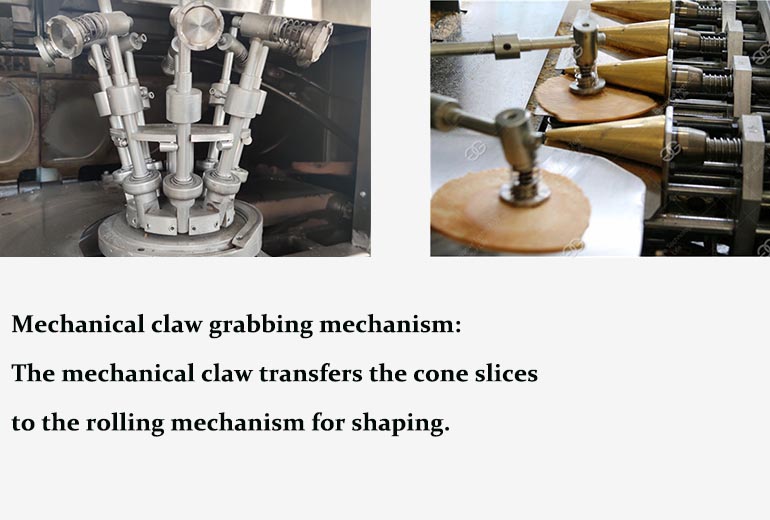

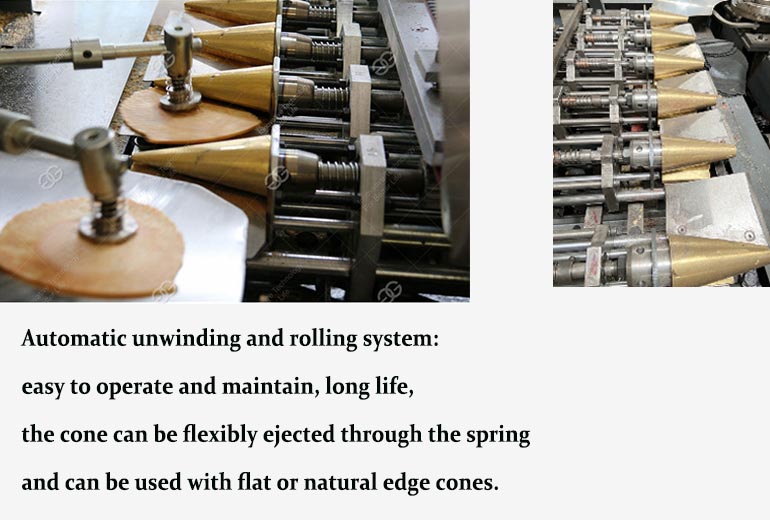

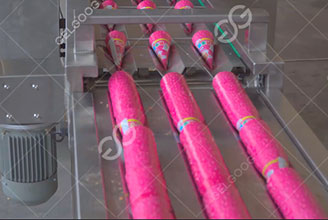

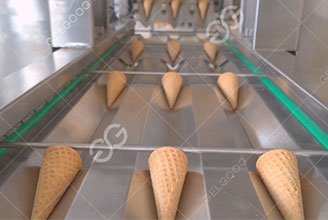

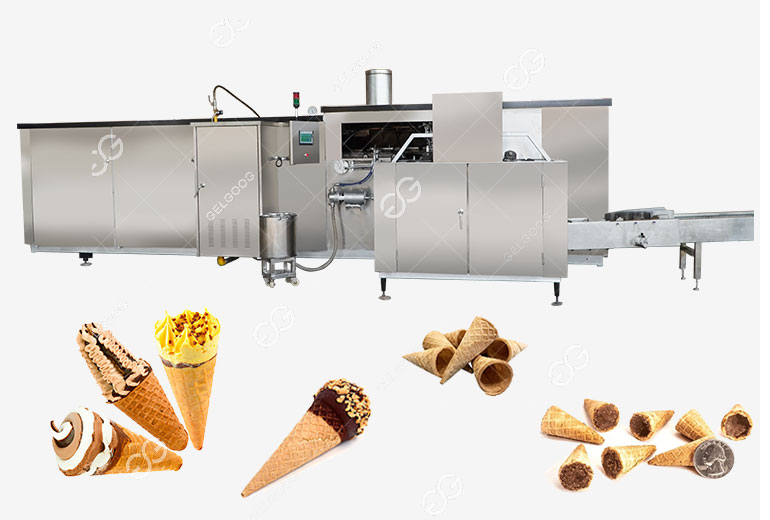

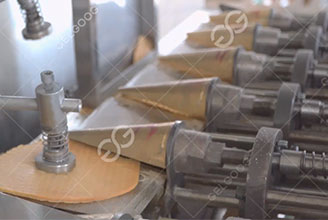

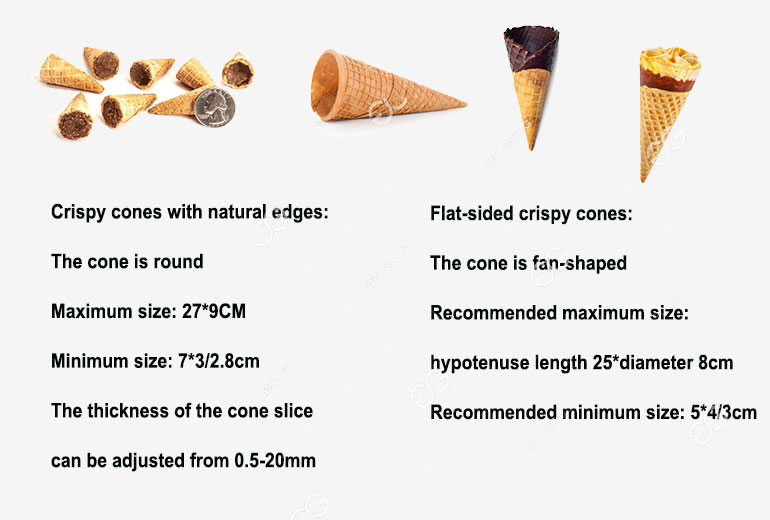

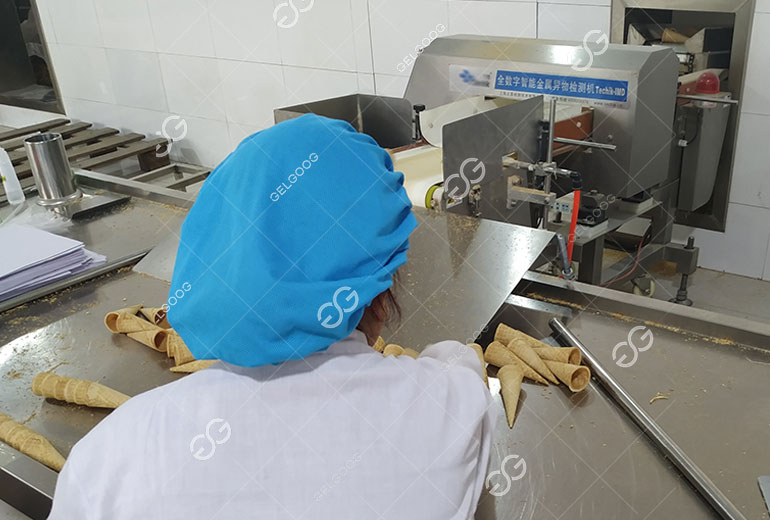

This Sugar Cone Production Line is specially designed for customers with large production requirements. It can realizeAutomatic grouting, automatic baking, automatic rolling, cooling, packaging, and other functions. This large-scale crispy sugar cone ice cream production line has a large output and can produce an average of 1,500-5,500pcs/h. We can customize it according to your needs. ⭐Crispy cones with natural edges: A cone is round, Maximum size: 27*9CM Minimum size: 7*3/2.8cm, The thickness of the cone sheet is adjustable from 0.5-20mm. ⭐Flat Crispy Cone: A cone is a sector, Recommended maximum size: Hypotenuse length 25*diameter 8cm, Recommended minimum size: 5*4/3cm. ⭐You can watch the "Process Demonstration" video below to learn more about the process of our Sugar Cone Production Line.
Large-scale production
Fully automated
Provide solutions, customizable

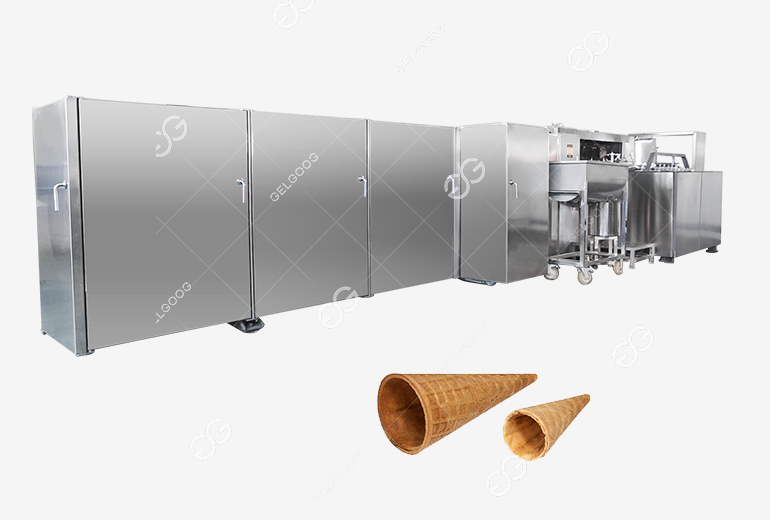

Our factory-designed Sugar Cone production line is a complete end-to-end solution designed for start-ups or companies looking to scale up their existing business. This Sugar Cone line is suitable for producing flat cones with dimensions and lengths of less than 120 mm. the size, weight, thickness, pattern and shape of the Sugar Cone can be customized according to customer needs.

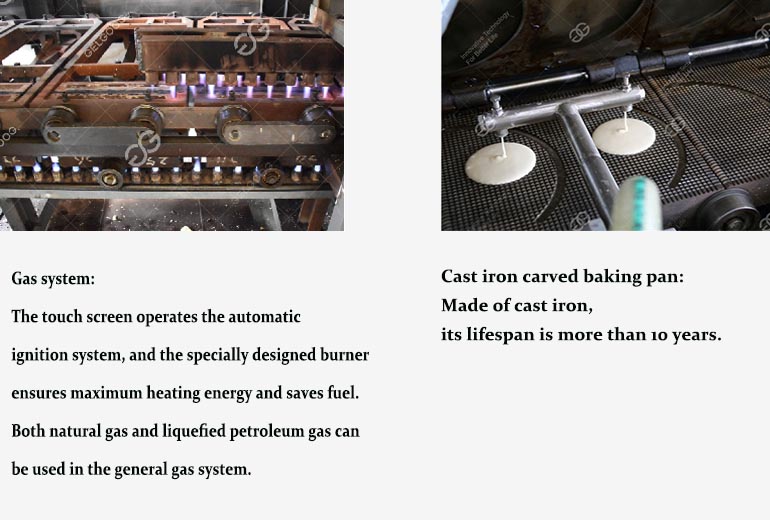

The rugged construction of the machine ensures stable operation, resulting in smooth and trouble-free production cycles.The baking trays of the Sugar Cone Line are 280*240 mm. The baking tray is made of high quality ductile cast iron, which is durable, wear-resistant, non-deformable and has a service life of more than 10 years.
This Sugar Cone line is designed to be energy efficient. The whole line can also use chocolate, chopped nuts, yogurt, coconut and other materials, and can be injected in layers to realize multi-purpose. It can well adapt to the market demand and increase the variety of Sugar Cone.
Our factory-designed Sugar Cone production line is a complete end-to-end solution designed for start-ups or companies looking to scale up their existing business. This Sugar Cone line is suitable for producing flat cones with dimensions and lengths of less than 120 mm. the size, weight, thickness, pattern and shape of the Sugar Cone can be customized according to customer needs.
The rugged construction of the machine ensures stable operation, resulting in smooth and trouble-free production cycles.The baking trays of the Sugar Cone Line are 280*240 mm. The baking tray is made of high quality ductile cast iron, which is durable, wear-resistant, non-deformable and has a service life of more than 10 years.
This Sugar Cone line is designed to be energy efficient. The whole line can also use chocolate, chopped nuts, yogurt, coconut and other materials, and can be injected in layers to realize multi-purpose. It can well adapt to the market demand and increase the variety of Sugar Cone.
| Model | Baking plate size(mm) | Voltage | Power | Capacity | Air consumption （m³/h） | Gas consumption （kg/h） | Power consumption | Angle | Suitable for cone length | Size | Weight |
| GG-DCL35-18 | 300×240 | 380v 50hz 3phase | 3kw | 1000-1500pcs/h | 6-8m³/h | 4.5-6 | 3kw/h | 15-35° | ≦180mm | 6*0.8*1.85m | 6T |
| GG-DCL37-18 | 300×240 | 3kw | 1500-2000pcs/h | 6-8m³/h | 4.5-6 | 3kw/h | ≦180mm | 7*0.8*1.85m | 6T | ||
| GG-DCL45-18 | 300×240 | 3kw | 2000-3000pcs/h | 6-8m³/h | 4.5-6 | 3kw/h | ≦180mm | 8*0.8*1.85m | 6T | ||
| GG-DCL55-18 | 300×240 | 3kw | 3000-3500pcs/h | 6-8m³/h | 4.5-6 | 3kw/h | ≦180mm | 9*0.8*1.85m | 7T | ||
| GG-DCL65-20 | 300×240 | 3kw | 3500-4500pcs/h | 6-8m³/h | 4.5-6 | 3kw/h | ≦180mm | 11*0.8*1.85m | 7T | ||
| GG-DCL75-22 | 300×240 | 3kw | 4500-5500pcs/h | 8-10m³/h | 6-8 | 3kw/h | ≦180mm | 11*1.9*1.85m | 8T |
Please leave your specific needs, so that we can contact you promptly the first time. The price of the product needs to be based on your specific needs and configurations, please fill in the message form below to fill in your needs, or directly with our sales team, and we will contact you as soon as possible.
We value customer experience, not only providing professional solutions and trustworthy equipment but also providing customers with the whole process of service experience from demand to satisfaction. Transportation and packaging.
We offer our customers a variety of organizational and technical measures. Providing good technical service is an important part of GELGOOG's industrial management, which is conducive to improving the economic efficiency of our customers, as well as improving the quality of our own products and product structure, creating greater value for our customers.
In your message below, if you mention your food industry experience or specific requirements, we will contact you first and provide you with a free quote and process flow details.
