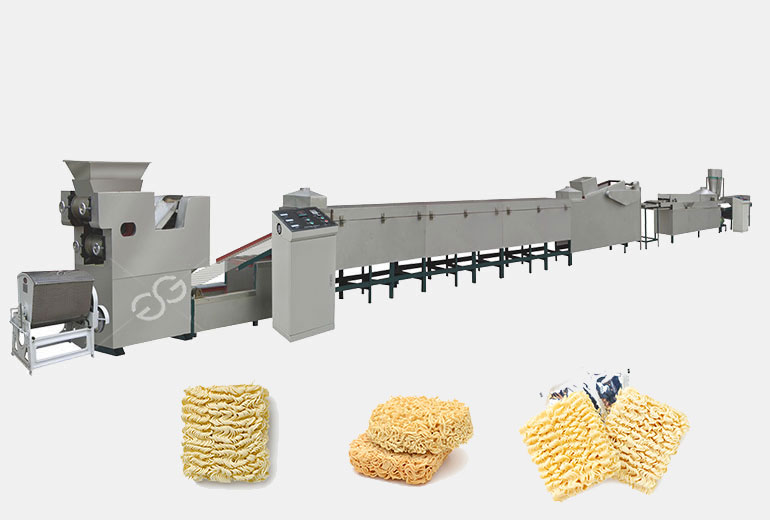

This Automatic instant noodles plant can also be used to produce non-fried instant noodles by changing the frying machine, which can also produce cup instant noodles by changing the mold. The Production flow chart: wheat flour, dressing mixer →curing machine →Composite continuous rolling→steamed noodles → frame cutting→folding → deep fry → cooling → packing. ⭐You can watch the "Process Demonstration" video below to learn more about the process of our Instant Noodles Production Line.
Wide range of uses, fried, non-fried, round, square
The yield of noodle pieces is high and the sales volume is good
High productivity, low energy consumption, and low production cost

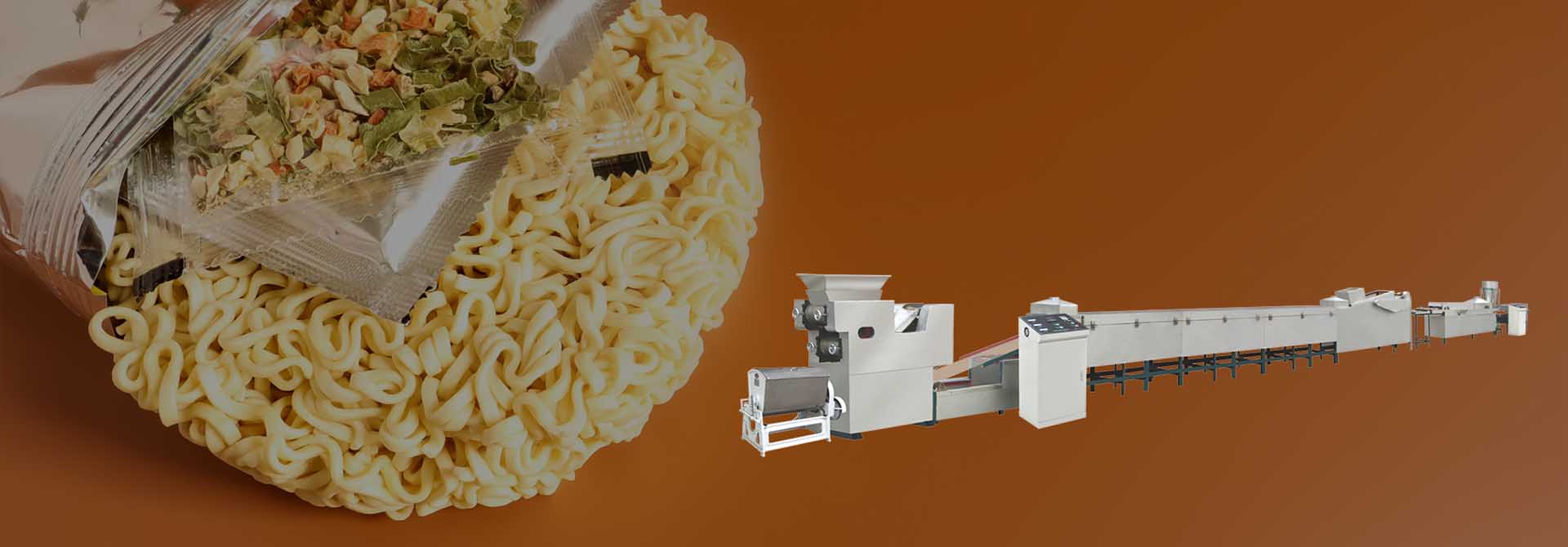

Automatic instant noodle production line including Fried Instant Noodle Line and Non-fried Instant Noodle Line with perfect technology, compact structure, original design, and stable performance, is developed on the base of like products and requirements in the world market. It realizes high automation, convenient operation, low energy, and small floor space, which assures all working procedures from feeding flour to finished products can be accomplished once.
The automatic instant noodle production line can offer many different models of instant noodle machines, with capacity from 11000 packets, 30000packets, 60000 packets, 80000 packets, 100000packets,160000packet, and 200000 packets per shift (8 hours.) ⭐Process flow of making instant noodles: Saltwater mixer and measurement-----mixing-----dough aging------pressing-----steaming----cutting and dividing------frying or drying------cooling------convey-----packing(in bags and bowl)
Features of instant noodle production line ⭐1. Fried instant noodles production lines are an alternative. ⭐2. Producing square, circular instant noodles, or both shapes by changing parts of configurations. ⭐3. Producing various specifications of noodle blocks. ⭐4. Offer professional technical support, after-sales service, and customized solutions.
Automatic instant noodle production line including Fried Instant Noodle Line and Non-fried Instant Noodle Line with perfect technology, compact structure, original design, and stable performance, is developed on the base of like products and requirements in the world market. It realizes high automation, convenient operation, low energy, and small floor space, which assures all working procedures from feeding flour to finished products can be accomplished once.
The automatic instant noodle production line can offer many different models of instant noodle machines, with capacity from 11000 packets, 30000packets, 60000 packets, 80000 packets, 100000packets,160000packet, and 200000 packets per shift (8 hours.) ⭐Process flow of making instant noodles: Saltwater mixer and measurement-----mixing-----dough aging------pressing-----steaming----cutting and dividing------frying or drying------cooling------convey-----packing(in bags and bowl)
Features of instant noodle production line ⭐1. Fried instant noodles production lines are an alternative. ⭐2. Producing square, circular instant noodles, or both shapes by changing parts of configurations. ⭐3. Producing various specifications of noodle blocks. ⭐4. Offer professional technical support, after-sales service, and customized solutions.
| No. | Machine Name | Model | Quantity | Note |
| 1 | Brine quantifier and mixer | GG10 | 1 SET | Power:0.75KW,Volume:100L/SET The parts connect with water are made of stainless steel |
| 2 | Double speed dough mixer | GG200 | 1 SET | Power 9/11 kw,200kg/pot/manual door opening The parts connect with flour are made of stainless steel |
| 3 | Disc cooker machine | GG200 | 1 SET | Power:4kw,size of pan:Diameter1800mm*410mm The parts connect with flour are made of stainless steel (Make sure the flour after mixing can be absorbed and mixed well) |
| 4 | Composite and continuous dough pressing machine | GG7-50 | 1 SET | Dough width 350mm,power 5.5kw+5.5kw=11kw 7 sets steel roller,frame is made of steel structure(frequency control) Diameter of roller:diameter 180*2,diameter 240*2,diameter180*2,diameter 162 |
| 5 | Single layer | GG50 | 1 SET | 16 meter,water sealing Main motor power 1.5kw(frequency control),Pan 0.37kw*2,stainless steel |
| 6 | Cutting,folding and conveying machine | GG80 | 1 SET | Main power 1.5kw+0.75kw,cutting blade 50 times/min,adjustable |

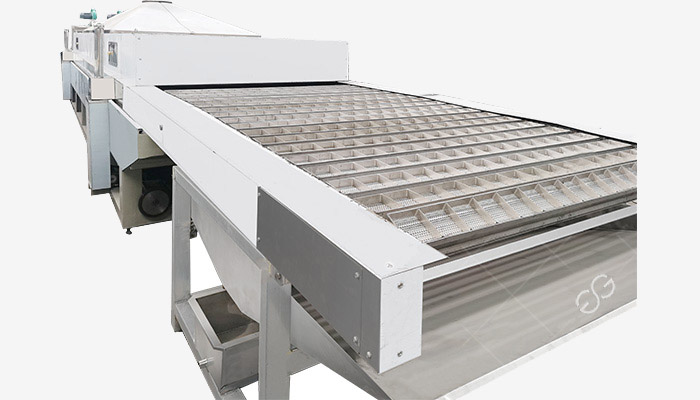

| 7 | Double layers drying machine | GG50 | 1 SET | Main motor power 1.5kw*2(frequency control+fan 5.5kw*4,net width:2 meters, total length:30m),stainless steel net |
| 8 | Horizontal conveyor | GG63 | 1 SET | Main motor power 0.37kw |
| 9 | Cooling conveyor | GG63 | 1 SET | One horizental:0.55kw,fan 0.37kw*4 ,length:6 meters.width:0.50 meter, Belt is made of stainless steel |
| 10 | Electricity control cabinet | GG-1 | 1 SET | Main program adopts frequency control, PLC program control |
| Total power | About 55kw |
